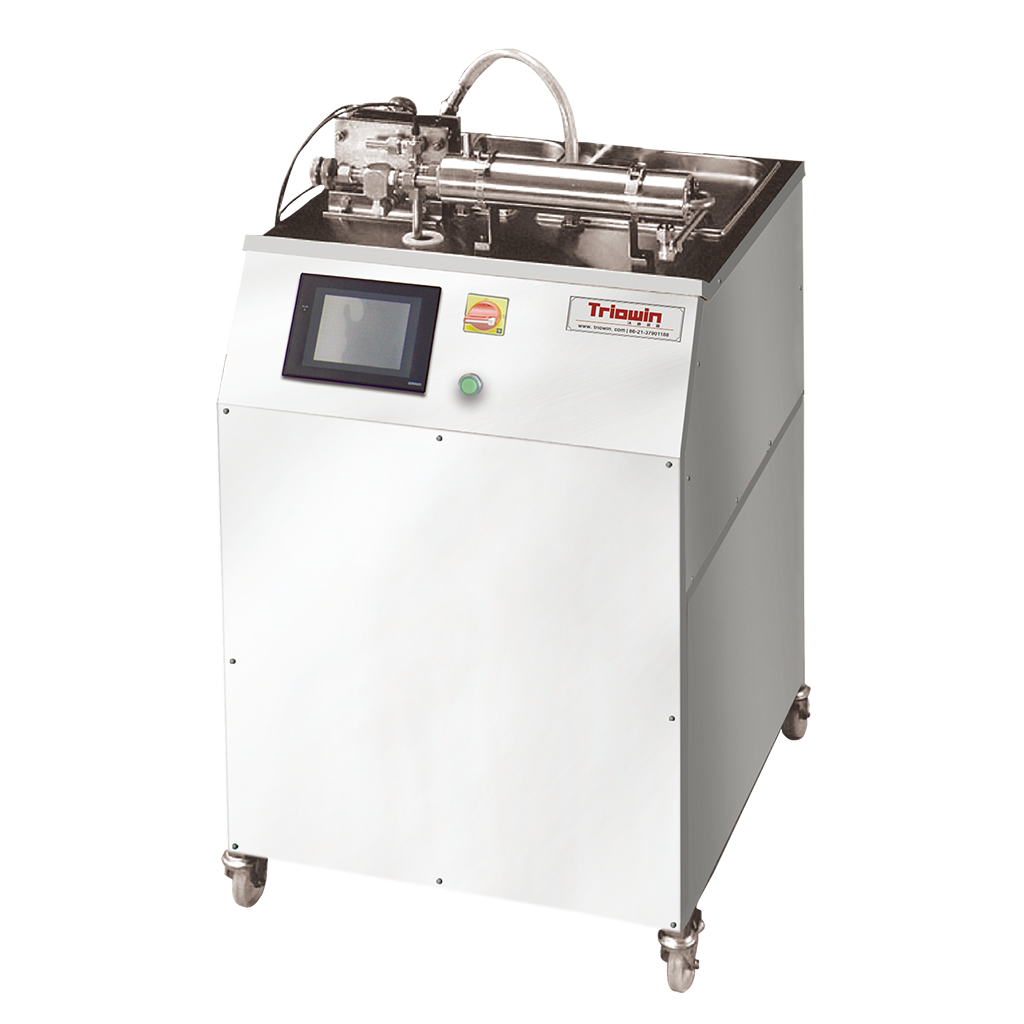

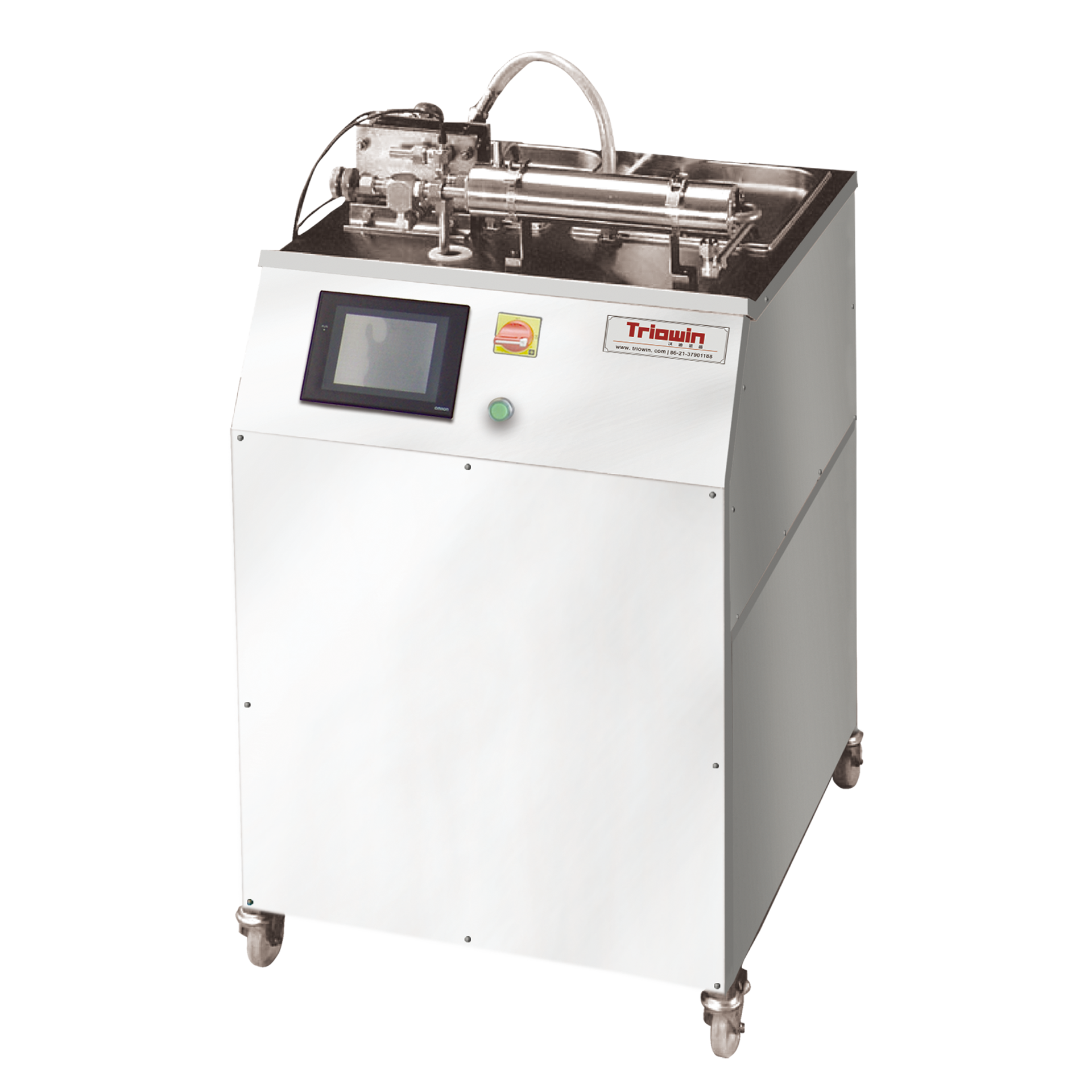

TW-RU15 Reverse Osmosis/Ultrafiltration System

The RO/UF unit is currently the smallest industrial membrane treatment system in the world and is used for laboratory reverse osmosis and ultrafiltration tests.

Contact Us

Technical Parameters

Pump flow	5-8LPM (25bar)
pressure	25bar
Membrane diameter	3.0cm
Single membrane area	0.094m²
Filling tank capacity	10L
Permeation tank capacity	8L
size	1.10.850.8m
volume	0.8m³
Gross Weight	250kg

System Features
- Equipment advantages

  It has two functions, reverse osmosis and ultrafiltration, to achieve on-site cleaning, independent operation and portability.
  Can be connected to a computer for data recording and analysis.
- Application

  Concentration, clarification, separation and standardization of milk, whey, fruit and vegetable juices, alcoholic beverages, etc., treatment of sewage, enzymes, antibiotics and organic acids.
